Coil Winding Machine (DLM-400) DLM-400 manufacturer from China DELONG MACHINERY EQUIPMENT FACTORY

Price:	30000.0~35000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DLM-400

Production Capacity: 100

Delivery Date: 30-45days

Means of Transport: Ocean

Packing: wooden case or others

It is horizontal and automatic winding machines with serial parallel coil formers,which is suitable for winding various AC,DC motor stator coil.

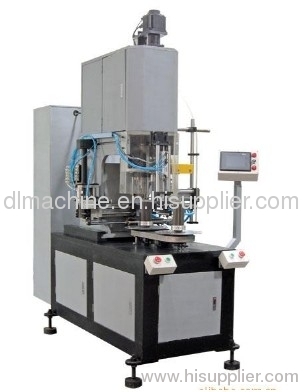

Coil Winding Machine (DLM-400)

1.Double vertical.

2.Excellent quality and competitve price

1. It is horizontal and automatic winding machines with serial parallel coil formers,which is suitable for winding various AC,DC motor stator coil and inductance coil.

2. It is controlled by a single board computer,and a stepping motor can automatically complete the operations such as zero resetting,traversing and skipping so as to realize exact lining.

3.Through the control panel,users can set the wire diameter,number of turns,through of traverse and skipping distance,etc.according to their demands.

Technical Parameter

Parameter	DLM-400
Max winding speed	2000 rpm/min
Max suitable coil segments	6
Suitable wire diameter	0.3-1.3 mm
Max coil down-lead	500 mm
Suitable motor poles	2\4\6\8
Max coil down-lead	260 mm
Input	380V/50Hz
Air pressure	0.5-0.8 MPa
Power	9000 W
Dimension	2000mm×2000mm×2300mm
Weight	about 1600 kg
